16A Mode 2 Type 2 Portable EV Charger With Temperature Sensor

Brand Name : ANS

Model Number : ANS-portable-charger

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000PCS/month

Delivery Time : 20-30days

Packaging Details : 15.7*15*3.15(in)

Product name : Portable EV Charger

Brand : ANS

Type : Portable EV charger

Rated Current : 16A

Rated Frequency : 50Hz/60Hz

Storage Temperature : -30 ℃ to +50℃

Stardard : EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017

Cable Colour : Black or Customization

Protection : IP67

weight : 3.5kg

Contact Now

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)


Product Description

Type CBYEN-ev16-P Plug the power 80N<F<100N
Color Black/White/customized Patch life ≥10000
Rated Current 8A-10A-13A-16A Fire rating UL94 V-0
Rated Voltage 380V~450V Waterproof rating IP67
Resistance Voltage 2000V Operating Temperature -30°C to50°C
Insulation resistance >10MΩ Cable Specifications 5*2.5mm2+2*0.5mm2
Contact resistance less than 0.5mΩ The main material PA/Copper Alloy

Functional definition:

Mark Functional Definition
1-(L1) AC power
2-(L2) AC power
3-(L3) AC power
4-(N) Neutral
5-(PE) PE
6-(CP) Control Confirmation
7-(PP)

Connection Confirmation




Product Detail

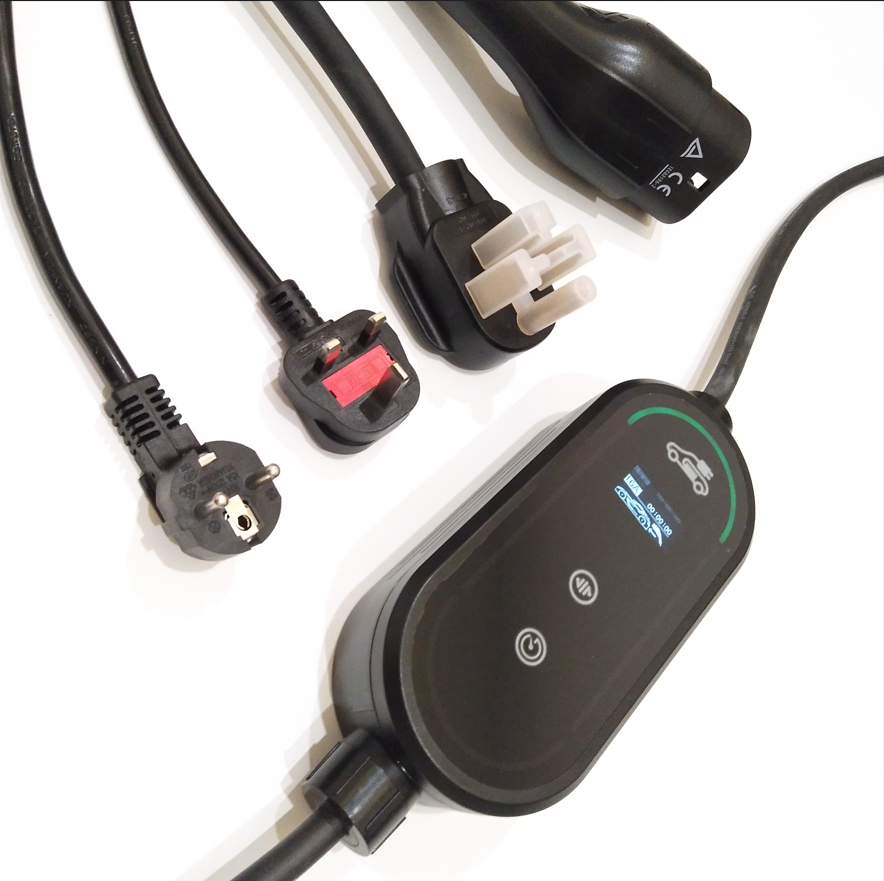

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)

Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE

16A Mode 2 Type 2 Portable EV Charger With Temperature Sensor






Features

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

16A Mode 2 Type 2 Portable EV Charger With Temperature Sensor

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

16A Mode 2 Type 2 Portable EV Charger With Temperature Sensor




FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
