7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug

Brand Name : ANS

Model Number : ANS-portable-charger

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000PCS/month

Delivery Time : 20-30days

Packaging Details : 15.7*15*3.15(in)

Product name : Portable EV Charger

Brand : ANS

Rated Current : 16A

Rated Voltage : 380V~450V

Storage Temperature : -30 ℃ to +50℃

Stardard : EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017

Cable Colour : Black or Customization

Waterproof : IP67

weight : Lightweight

Contact Now

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)


Product Description

Advantages: reliable, safe, convenient and fast.
With adjustable amperage, embedded charging controller and PA, copper alloy and IP67 waterproof materials, the ultimate charging speed, reliability and safety are achieved.
Color: black, white and other colors can be selected, and customization is also supported.

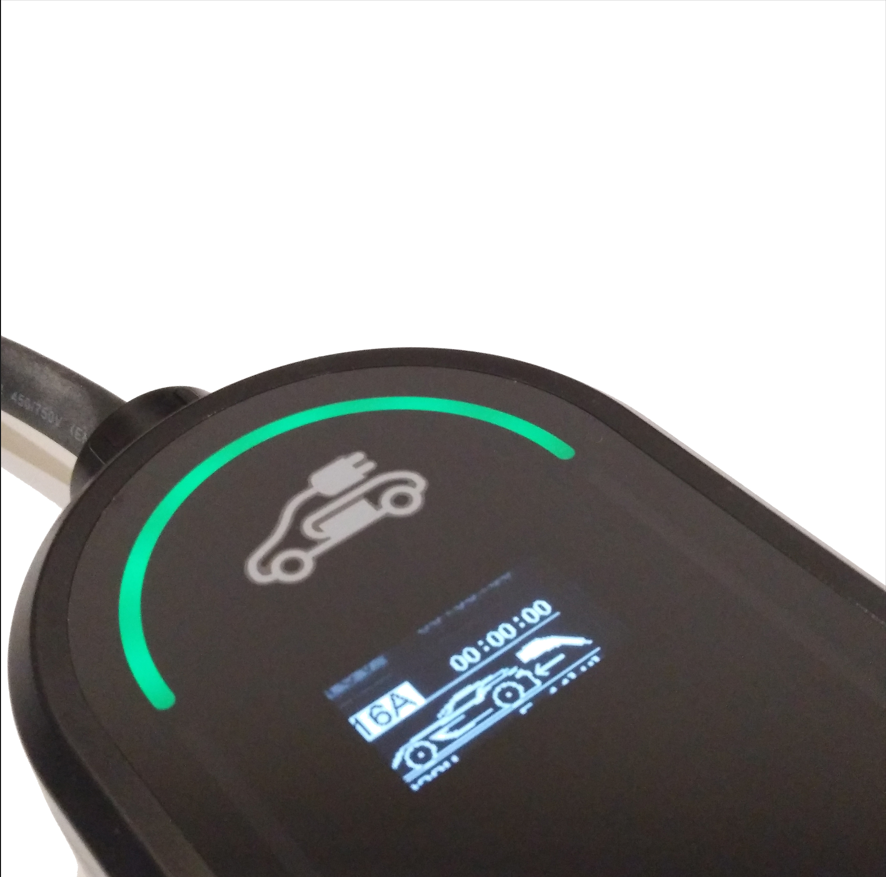

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

Type CBYEN-ev16-P Plug the power 80N<F<100N
Color Black/White/customized Patch life ≥10000
Rated Current 8A-10A-13A-16A Fire rating UL94 V-0
Rated Voltage 380V~450V Waterproof rating IP67
Resistance Voltage 2000V Operating Temperature -30°C to50°C
Insulation resistance >10MΩ Cable Specifications 5*2.5mm2+2*0.5mm2
Contact resistance less than 0.5mΩ The main material PA/Copper Alloy

Functional definition:

Mark Functional Definition
1-(L1) AC power
2-(L2) AC power
3-(L3) AC power
4-(N) Neutral
5-(PE) PE
6-(CP) Control Confirmation
7-(PP)

Connection Confirmation


Product Detail

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)

Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE

7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug
7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug
Producing&Packing



7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug


Certification


7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug7KW Mode 2 Portable EV Charger With Schuko Plug 16A Power Plug
